Name: MV6 UpKit
SKU: 805001U
Price: 199.00 EUR
Availability: OutOfStock

! NEW PRODUCT !

199,00€

Price VAT included

MV6 40m Upgrade Kit
40m Extension Kit for MV6
Max Input Power: 1500W SSB
Parts weight: 0.75 kg.
Packaged weight: 1.9 kg.

Out of stock

SKU: 805001U Categories: HF Antennas, VHF Antennas Tags: Grazioli MV6 upKit MV6 upKit

Description and Technical Info

The MV6 Antenna Upgrade Kit allows you to add the 40m band (7MHz) thanks to the capacitive cap coil, plus a vertical stylus section, which makes the central stylus Dual Band (40+20m). In addition, the “DBFC” wire counterpoise, which stands for Dual Band Folded Counterpoise, (patent pending) to be installed on existing radials, makes the 40m band resonant and adapted.

The kit comes with everything you need for quick and easy installation, following the instructions provided in the enclosed manual.

This upgrade kit makes your MV6 fully equivalent to the new MV7, which already incorporates the 40m band. For further technical details, please refer to the MV7 antenna page.

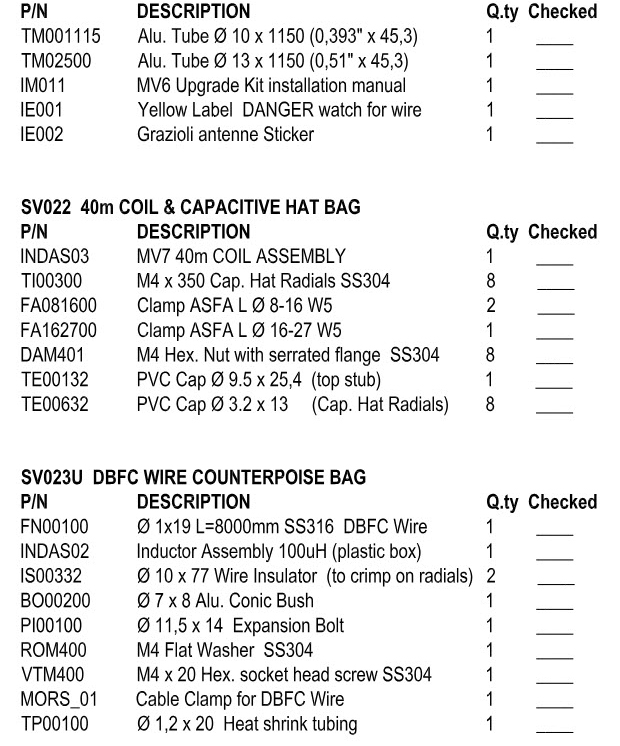

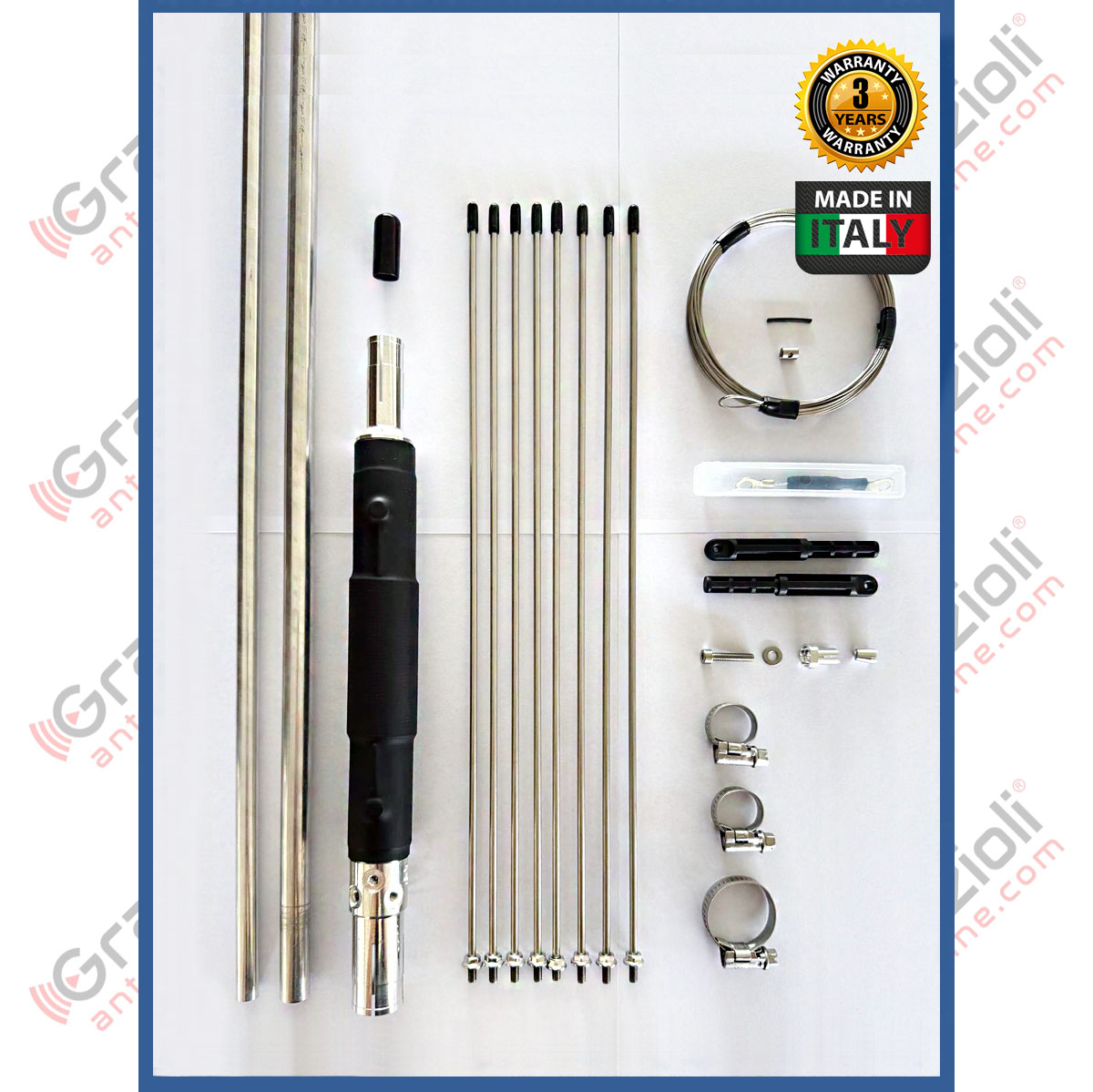

Components included in the Upgrade Kit

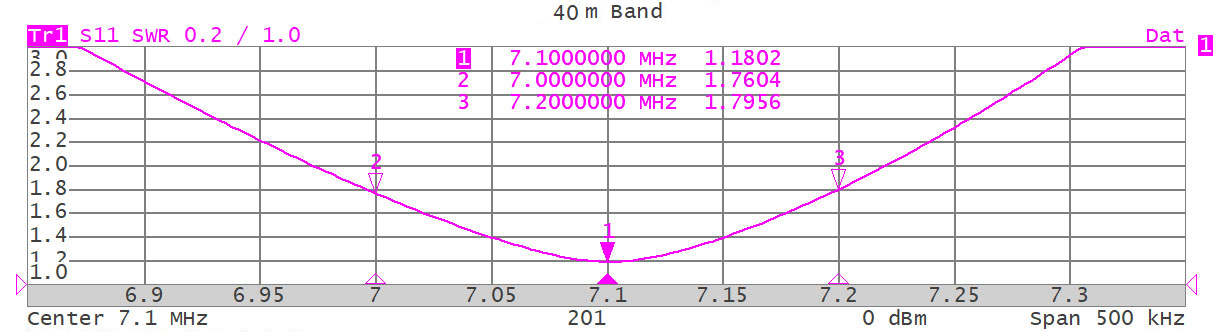

40m Band SWR Chart

BACK TO CATALOGUE

F.A.Q. MV6 UPKIT

What is the MV6 UpKit?

Grazioli MV6 UpKit is the upgrade kit for the MV6 antenna that allows extension to the 40 m band (7 MHz) thanks to a coil with a capacitive cap and a ‘DBFC’ (Dual Band Folded Counterpoise) wire counterweight.

What components are included in the MV6 UpKit?

The kit includes the 40m coil with capacitive cap, the additional vertical stylus part, the DC-Ground coil, and the ‘DBFC’ counterweight to be installed on existing radials.

What is the performance of the MV6 UpKit?

The kit can operate at a maximum power of 1500W SSB in the 40m band, weighs 0.75 kg, and weighs 1.9 kg in its packaging.

Does the MV6 UpKit make the MV6 equivalent to the MV7?

Yes, by installing the MV6 UpKit, your MV6 antenna becomes completely equivalent to the new Grazioli MV7, which already integrates the 40m band.

Is the kit compatible with amateur bands?

Yes, the kit is designed for radio amateurs who want to extend the HF band of their Grazioli MV6 antenna to 40m, improving coverage and versatility.

Where is the kit manufactured and what is the warranty?

The kit is manufactured exclusively in Italy by Grazioli Antenne and is covered by a 3-year warranty, the same as Grazioli antennas.
